1pcs Solid State Drive SSD HDD mSATA Module

(Apply Model As title)

This drive is not Mini PCIe slots and only use in some laptop.
Please be sure your platform must support that slot functionality.
Demension: 24 x 95 x 2.2mm
Those part numbers of item are same as specification, we would ship randomly.
New item is 1 Year warranty for Original manufacturer
Refurbished or New stock item is Doa 30days.
Other SSD HDD, click here.
Need More this item or out of stock, please contact us.

Specification >>>

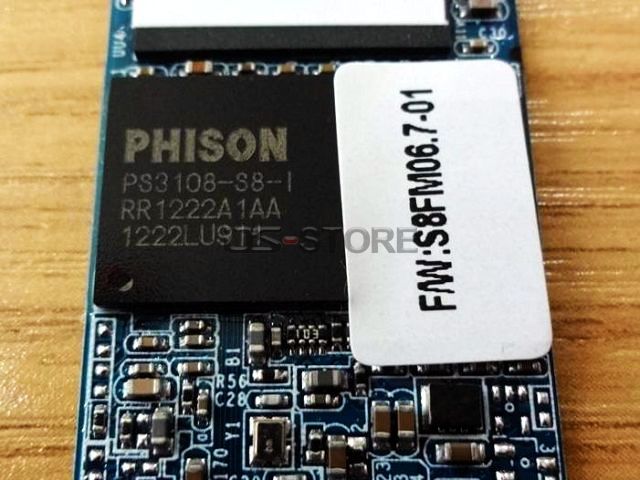

Phison S‐Module VIII S8 delivers all the advantages of Flash Disk technology with the Serial ATA III interface, fully compliant with standard mSATA form factor. The S‐Module VIII S8 is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal. Its capacity could provide a wide range up to 256GB. Also it can reach 500MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark). Also the power consumption of mSATA module is much lower than traditional Hard Drive.

Electrical/Physical interface:
a. SATA interface
Support SATA 1.5Gbps, 3Gbps and 6Gbps interface.

b. DDR3 IO
Support DDR3 I/O interface

c. Flash IO
Support 1.8V and 3.3V voltage level
Support 1.8V for ONFI Flash
Support 3.3V for conventional Asynchronous Flash

Controller Features:
a. SATA III
SATA Revision 2.6 compliant.
Compatible with SATA 1.5Gbps, 3Gbps and 6Gbps interface.
Power management supported
Support expanded register for SATA protocol 48 bits addressing mode
Embedded BIST function of SATA PHY for low cost mass production

b. NAND Flash Interface
Build in hardware ECC circuit (up to 72bit/1KB).
Support all types of SLC and MLC Large Block 8KB/page NAND Flash.
ONFI2.0 and Toggle2 Interface support
Bus Width: 8/16 bit.
Contain 1pc to 4pcs TSOP/BGA Flash

c. DDR3 interface
16 bit data bus.
Data Rate: 500Mbps.

d. Build in 32 bits microcontroller

e. UART

f. GPIO

Environmental Conditions:
☆ Temperature: ‐40°C to 85°C in storage / 0°C to 70°C in operating
☆ Humidity: RH 90% under 40°C (In Operation)
☆ Shock : 500G/2ms
☆ Vibration 80‐2000Hz/20G
☆ Booting feature from Windows/Linux
☆ Acoustic = 0dB

Weight

199 g

Condition

New & Unused, Refurbished

Interface

Model

HDD Size

Marca di HDD

UPC

Height

Computer Type

Handling Process and Time >>> Within 2 days, we will picking products from inventory, quality checks, and packaging. The tracking number would be release and allows customers to monitor the shipment's progress during transit. Shipping and Delivery (World Wide Suooprt) >>> Free shipping approx 7-15 days, Standard Shiping approx 5-12 days, Expedit Service approx 2-4 Days. Local logistic serivce approx 1-7 days (support USA, Britain, Europe and Asia)

Click to enlarge

Back to products

Phison 128GB SSH128GPTC0-S80 SSD mSATA NGFF HDD for ASUS UX21 UX31 Laptop Netobook Hard Disk Module Solid State Drive

Name: Phison 128GB SSH128GPTC0-S80 SSD mSATA NGFF HDD for ASUS UX21 UX31 Laptop Netobook Hard Disk Module Solid State Drive
SKU: HDDP-SSH128GPTC0
Availability: InStock

$65.00 $146.25Price range: $65.00 through $146.25

USD

EUR

GBP

CAD

AUD

JPY

MXN

HKD

TWD

CNY

SGD

PLN

KRW

MYR

AED

TRY

Asus UX series Laptop appoint to use

Condition	Clear

Compare

Add to wishlist

SKU: HDDP-SSH128GPTC0 Categories: Computer & Accessories, Hard Disk Drive, NGFF, Phison SSD, Special Offer, SSD

Description

Additional information

Weight	199 g
Condition	New & Unused, Refurbished
Interface	mSATA Module
Model	SSH128GPTC0-S80
HDD Size	Module
Marca di HDD	Phison
UPC	768451025859
Height	2.2mm
Computer Type	Desktop & Laptop
