OSGEAR AVC Intel CPU Fan LGA 1150 1151 1155 1156 1200 1366 1567 2011 2066 775 Cooling Cooler Heatsink Socket T B LS R R4 H 2 3 4

OSGEAR AVC CPU Fan Cooling Cooler Heatsink for intel LGA Series Generic

The OSGEAR AVC Intel CPU fan cooler is engineered to deliver reliable and efficient thermal performance for both desktop computers and server systems.
With a square copper core design and optimized airflow structure, it ensures fast heat transfer and stable CPU operation even under heavy workloads.

Wide Compatibility Across Intel Platforms

This CPU cooler supports a broad range of Intel sockets, making it a flexible solution for upgrades and replacements.

Compatible Platforms:

• LGA 1150 / 1151 / 1155 / 1156

• LGA 1200

• LGA 1366

• LGA 1700

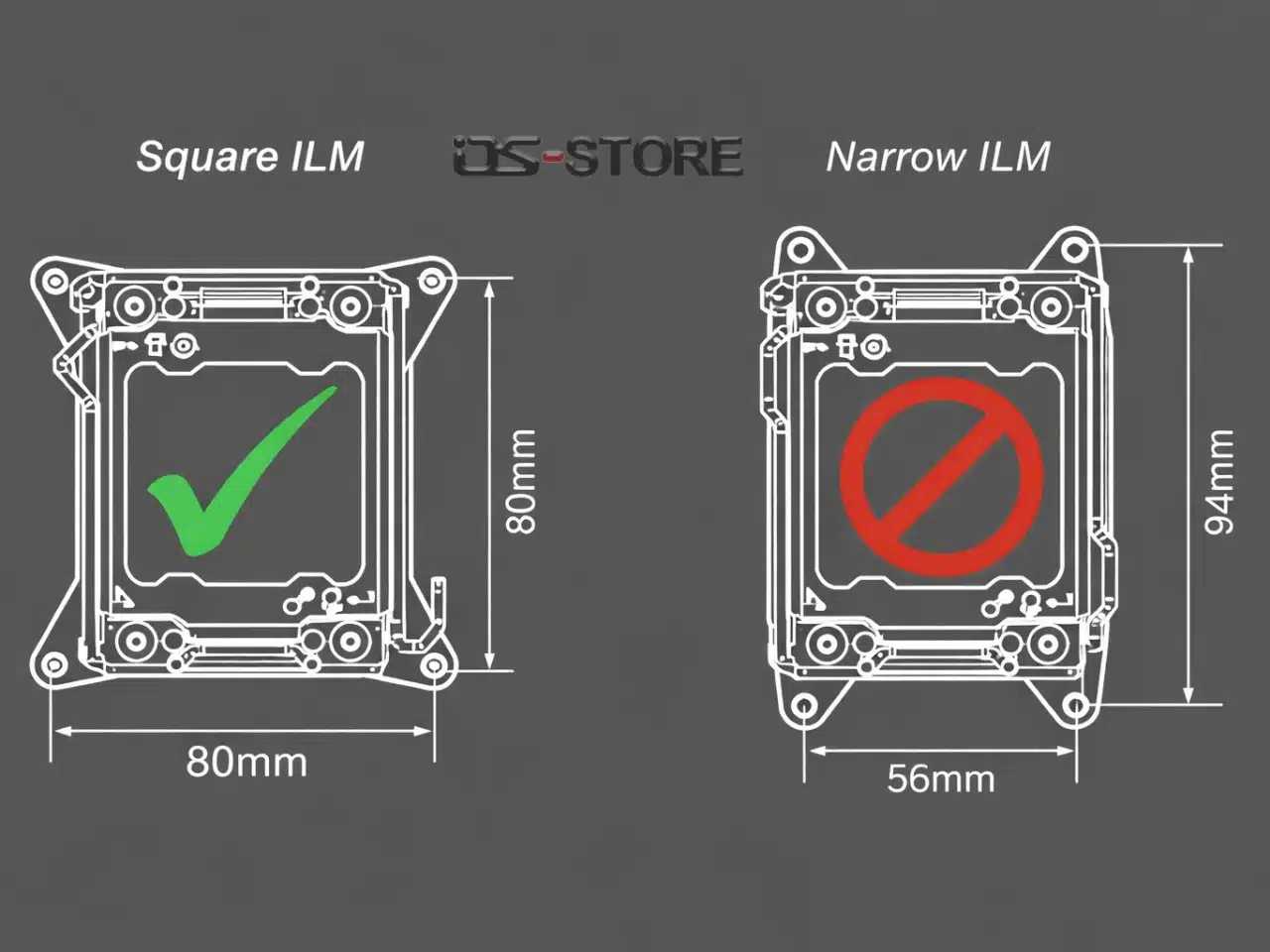

• LGA 2011 (only Squre bracket)
• LGA 2066 (only Squre bracket)

✔ Universal square mounting design (75–80mm hole spacing)
✔ Ideal for system integrators and maintenance replacements

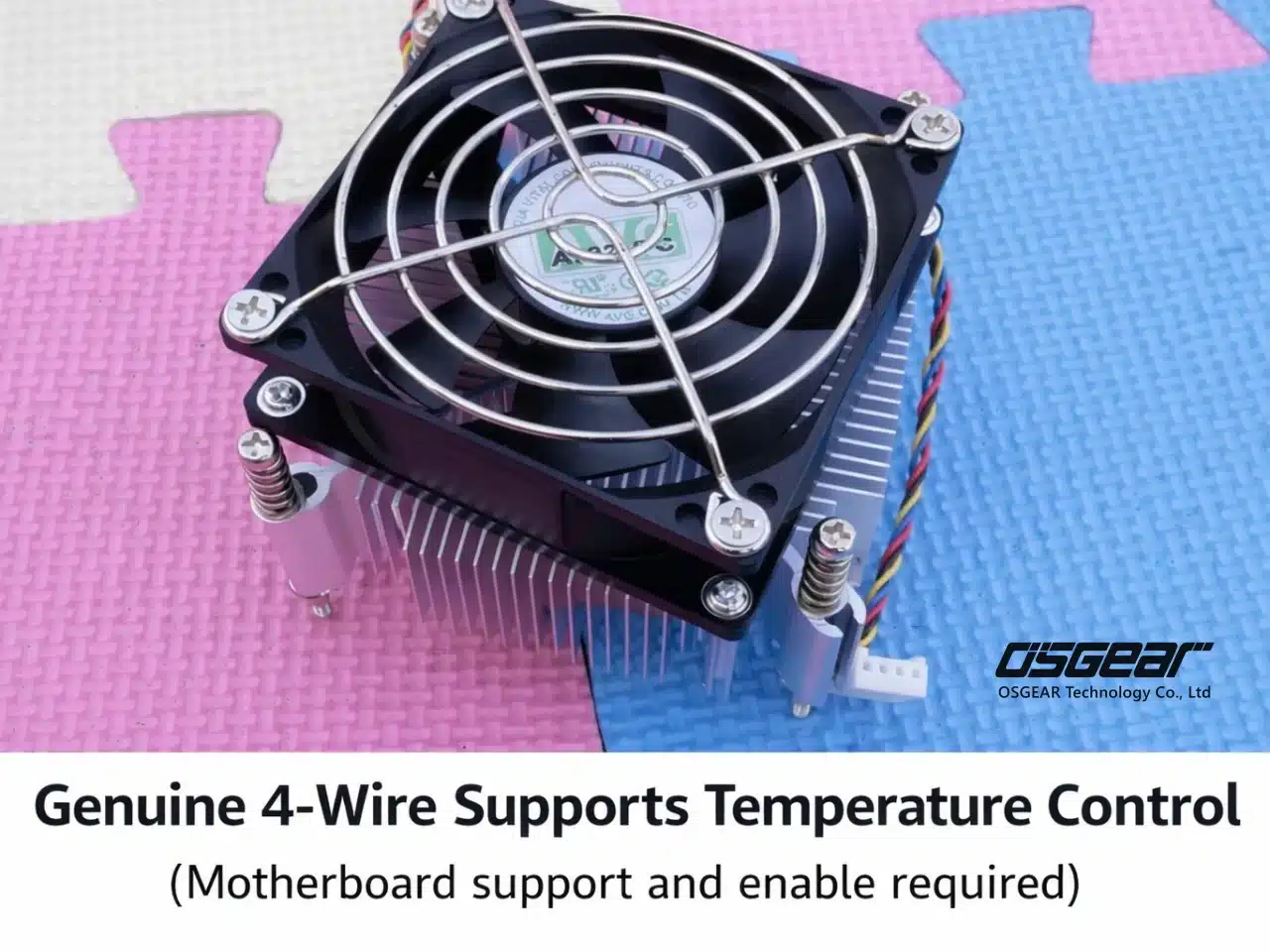

PWM Smart Speed Control (4-Pin)

Equipped with a 4-pin PWM connector, the fan automatically adjusts speed based on CPU temperature.

• Speed Range: 2300 ±5% – 4500 ±5% RPM

• Noise Level: 0–20 dBA

• Intelligent cooling performance with low noise operation

✔ Keeps your system quiet at low load
✔ Boosts cooling when performance is needed

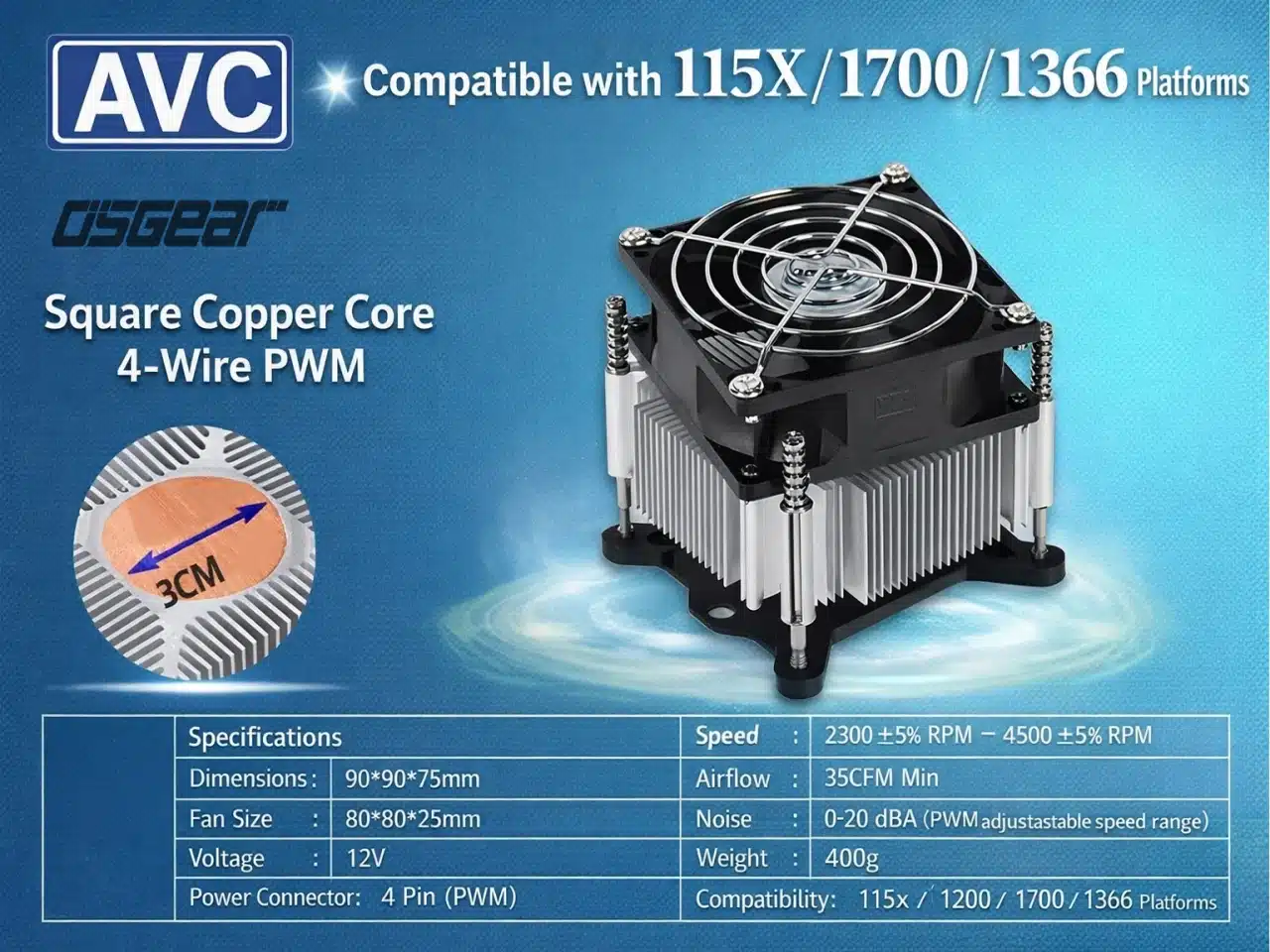

Strong Cooling Performance

Built for effective heat dissipation and long-term stability.

• Airflow: ≥35 CFM

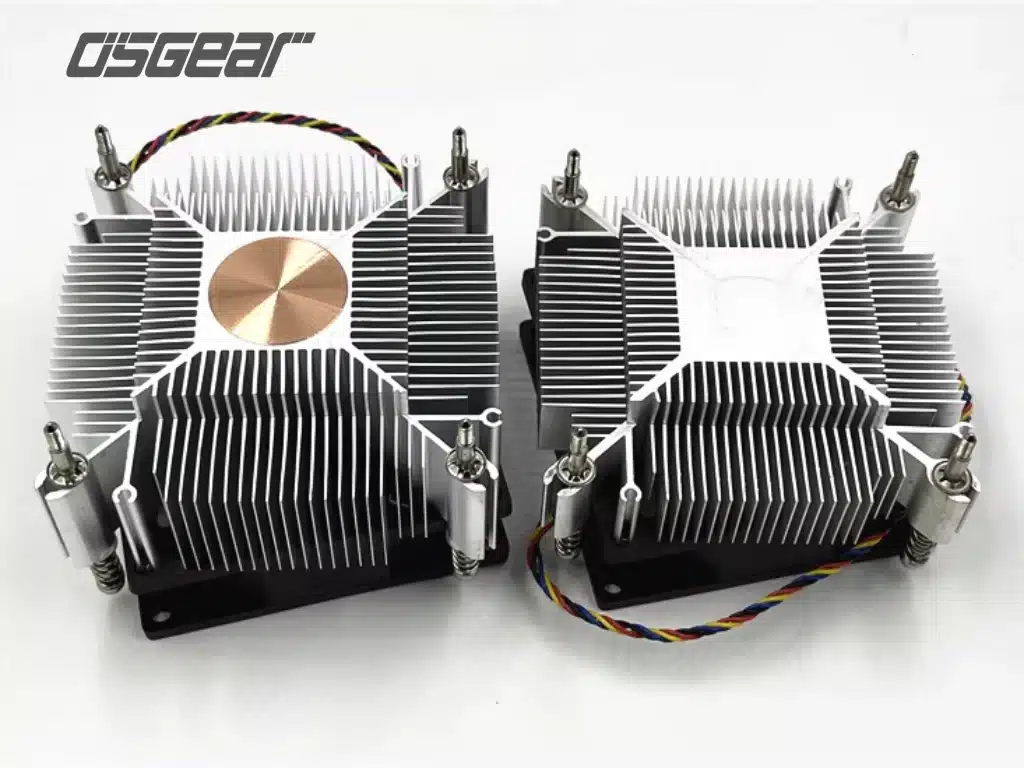

• Copper Core Size: 3 cm

• Aluminum heatsink for enhanced heat spread

• Fan Size: 80 × 80 × 25 mm

✔ Maintains optimal CPU temperature
✔ Prevents overheating and performance throttling

Compact & Durable Design

• Dimensions: 90 × 90 × 75 mm

• Weight: 400g

• Voltage: 12V

✔ Space-saving design for various PC builds
✔ Durable structure for long-term usage

Ideal for Multiple Applications

This Intel CPU cooling solution is perfect for:

• Desktop PC upgrades

• Workstations

• Entry-level servers

• Industrial computers

• Replacement of old or faulty CPU coolers

Why Choose OSGEAR CPU Cooler?

• Reliable thermal control for stable system performance

• Wide Intel compatibility (multi-socket support)

• Efficient PWM smart cooling system

• Professional supplier with global distribution capability
